JTAG SWD Adapter

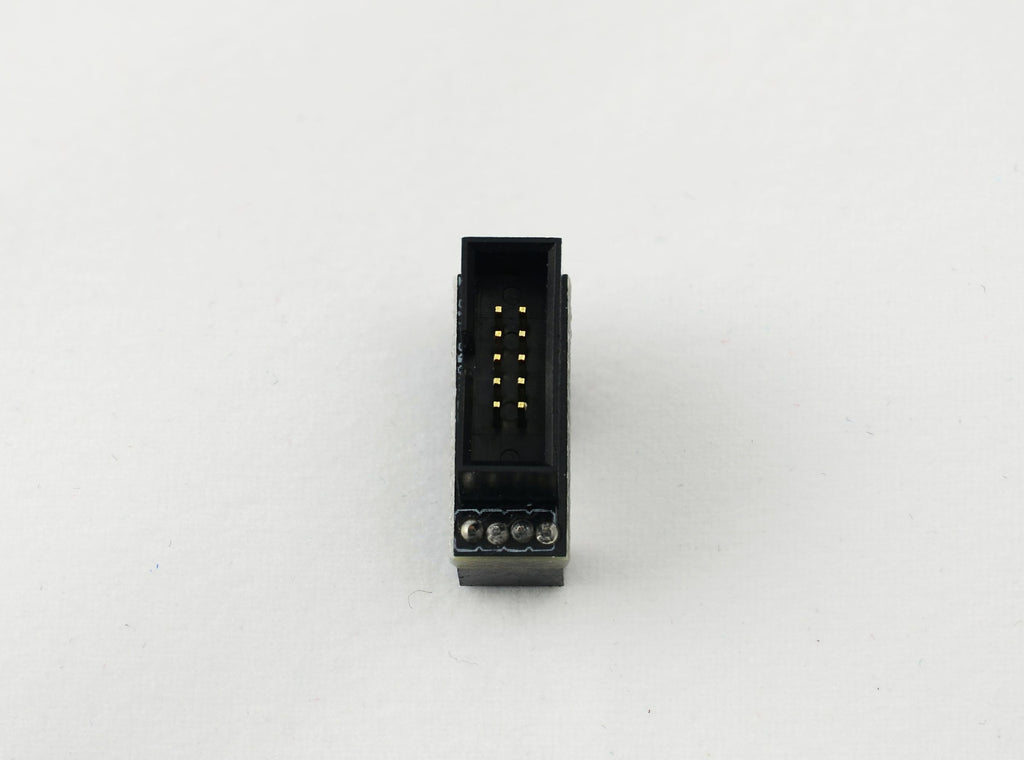

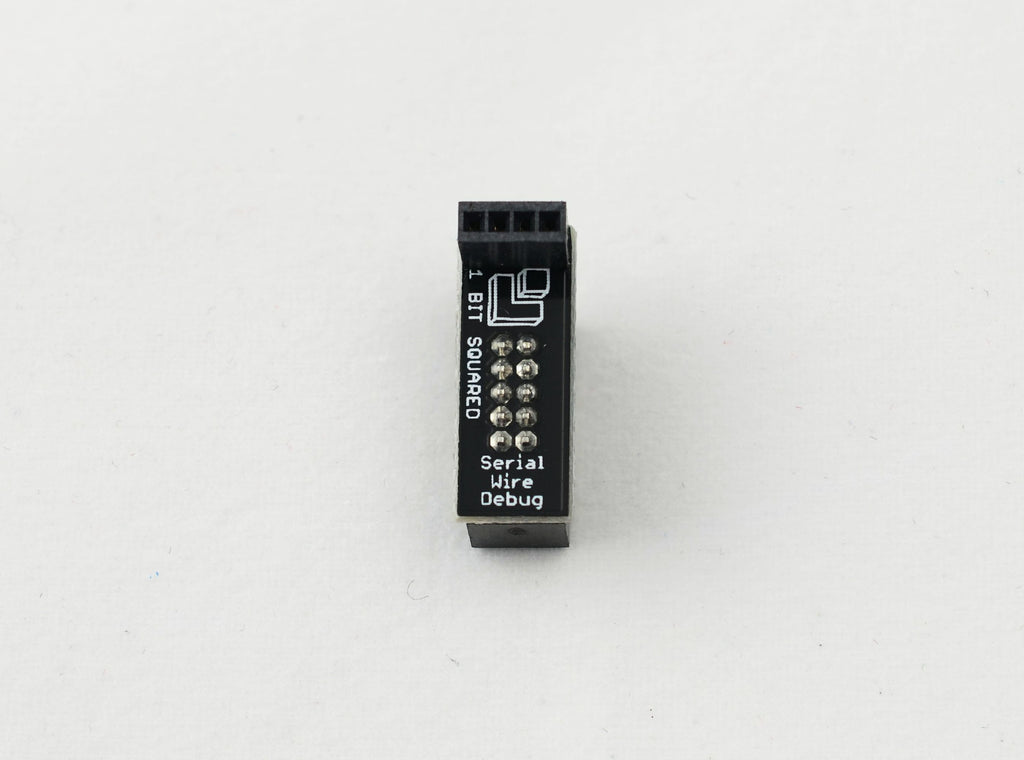

This JTAG Serial Wire Debug (SWD) adapter makes the connection of the Black Magic Probe to 1 BIT SQUARED products very simple. Just plug the adapter into the JTAG IDC ribbon cable on one end and the USBRF or Lisa/S onto the other.


In striving for smaller hardware, 1 BIT SQUARED is incorporating the 4 pin 0.05" pitch SWD connector into our designs. This adapter makes the connection between the ARM cortex standard 10 pin ribbon cable to our 4 pin connector very simple.

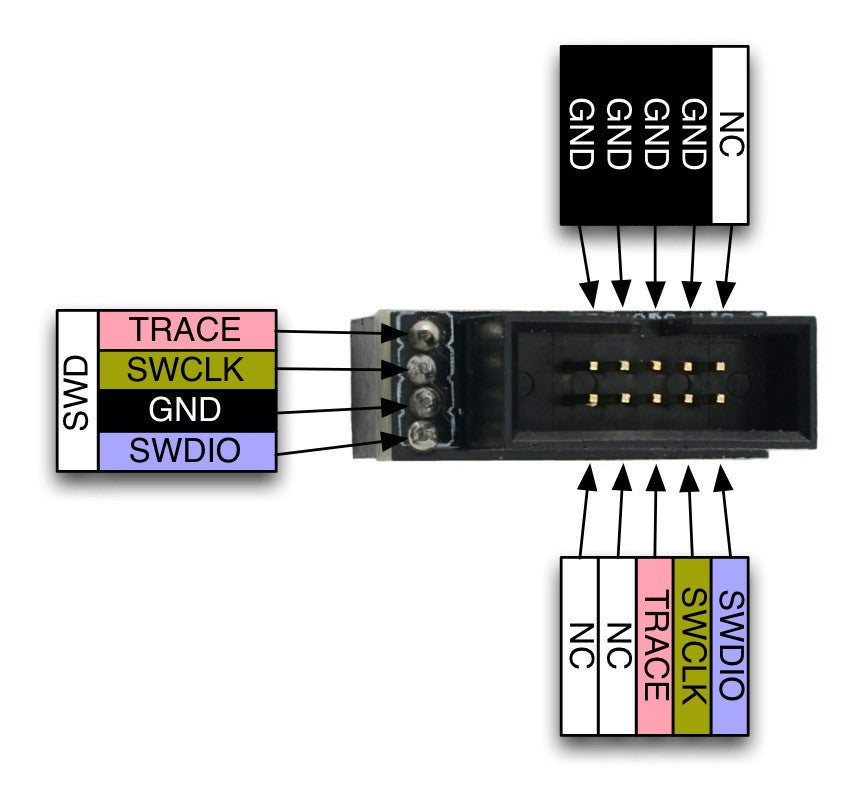

The pinout of our SWD connector is the following:

  • GND


€12.00 EUR - + €2.28 EUR VAT/MwSt.
